Tunnels with prewash for long workdays

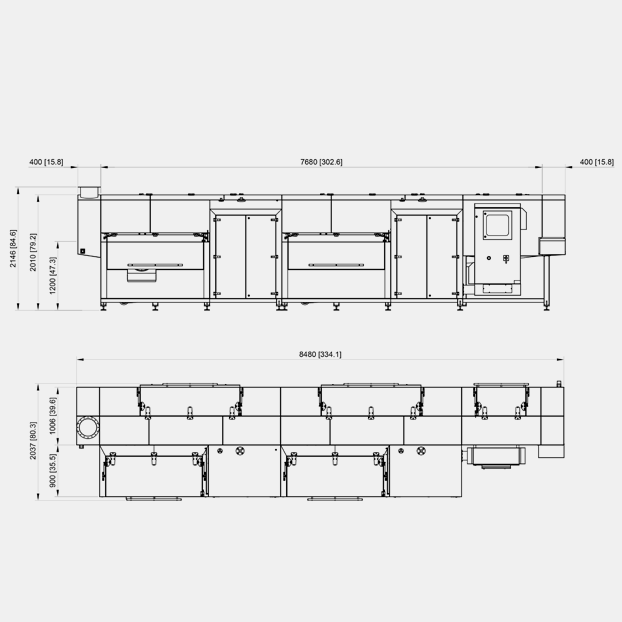

L-600 is part of the L series, the most robust, hygienic and accessible in the market. No water retention, continuous welding and full access for cleaning and maintenance. With the best filtering system and the strategic combination of flow and pressure to maximise the impact, this Serie guarantees a perfect result with an extraordinary energy efficiency. Possibility of washing different kind of elements: crate washer, tray washer, tote washer, mould washer, bucket washer, RPC's washer.

Mimasa Technology

  • Hygienic Design

    Retention zones and 90º angles elimination, continuous welding, great accessibility. Let water flow!

  • Plug & Clean

    We design our systems to be easy to assemble, install and connect.

Technical Features

  • Maximum clearance (WxH)

    600x350mm

  • Production (600mm long elements)

    1.500u/h adjustable

  • Pump power

    18.5 kW + 18.5 kW

  • Filtering

    2 screw filters + 2 rotary filters Self-cleaning

  • Phases

    Prewash-Wash-Rinse-Disinfection

  • Heating

    Steam or electrical. Other options available

  • Options and accessories
  • Adjustable top guiding system for different heights
  • Lateral guiding for different widths
  • Steam extractor systems
  • Detergent and disinfectant dosing systems
  • Conductivity control
  • Versions with mesh chain for washing special items
  • Custom-made cages for washing small items
  • Recirculated rinse phase before final rinse
  • Control program and HACCP operational log
  • Blowing between phases
  • Heat-insulated versions
